Description
Introduction

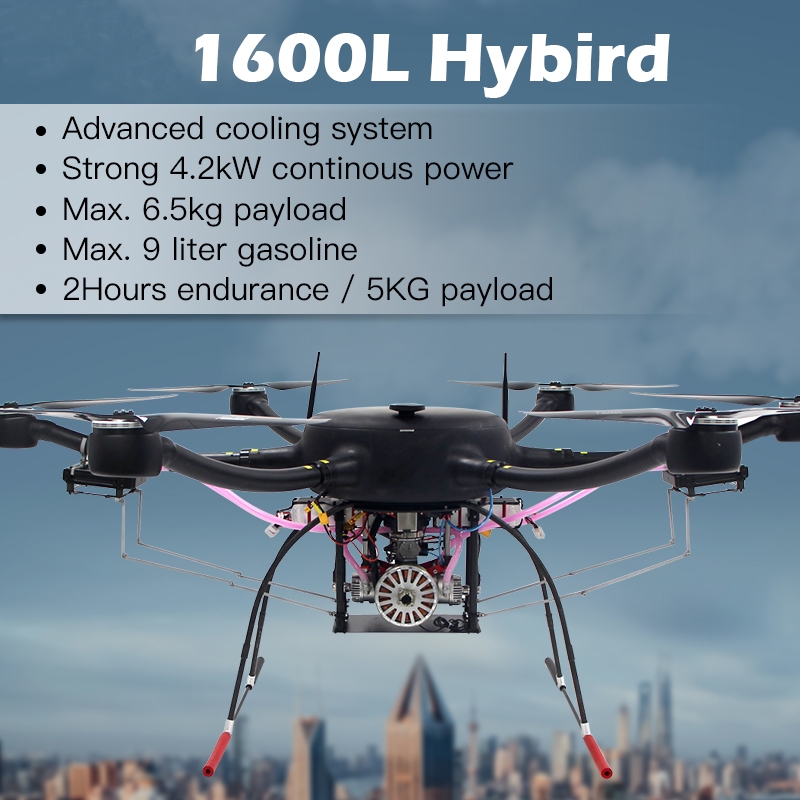

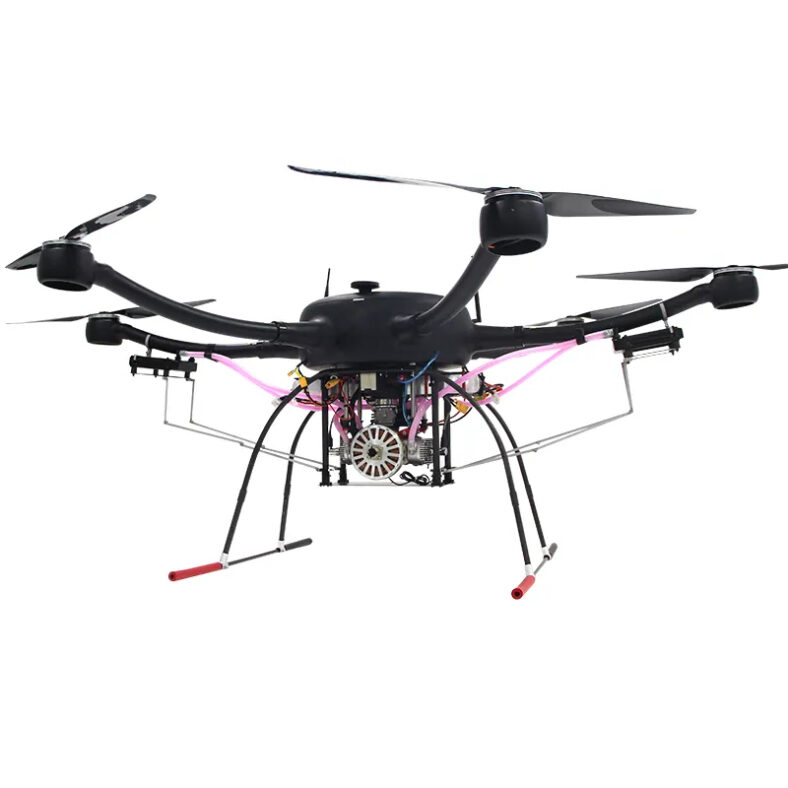

YD6-1600L gas-electric hybrid drone is using one powerful gas-driven electricity generator which will give you continuous and stable power supply despite the high/low temperature or high altitude, and will enable you to carry out long-range inspection, survey, aerial photography, search, rescue, and public safety applications.
Specification
| MTOW | 34kg |
| Weight w/o battery and payload | 16kg |
| Wingspan | 3,914mm |
| Length | 1,920mm |
| Height | 750mm |
| Frame weight | 7.45kg |
| Max payload (battery included) | 17.7kg |
| Battery weight (Tattu 6S 32000mAh) | 7.2kg |
| Suggested max payload weight | 10kg |
| Endurance | 3.5 hours (2kg payload) / 2 hours (6kg payload) / 90min (10kg payload) |
| Cruise speed | 75-100km/h |
| Max speed | 120km/h |
| Stall speed | 57.6km/h |
| Max ascend speed | 14.4km/h |
| Max descend speed | 18km/h |
| Anti-wind capability | 43.2km/h |
| Operating Altitude(Max.) | 4,500m ASL |
What is included
1 x YD6-1600L carbon fiber quadcopter frame
6 x T-Motor motor
6 x T-Motor ESC
3 x T-Motor 28*9.2 inch propeller CW&CCW
1 x Pixhawk Cube Orange Standard Set With Here 3 GNSS
1 x YR16S 16 Channel Radio Controller
1 x 4.2kW Generator
1 x 9L Fuel Tank

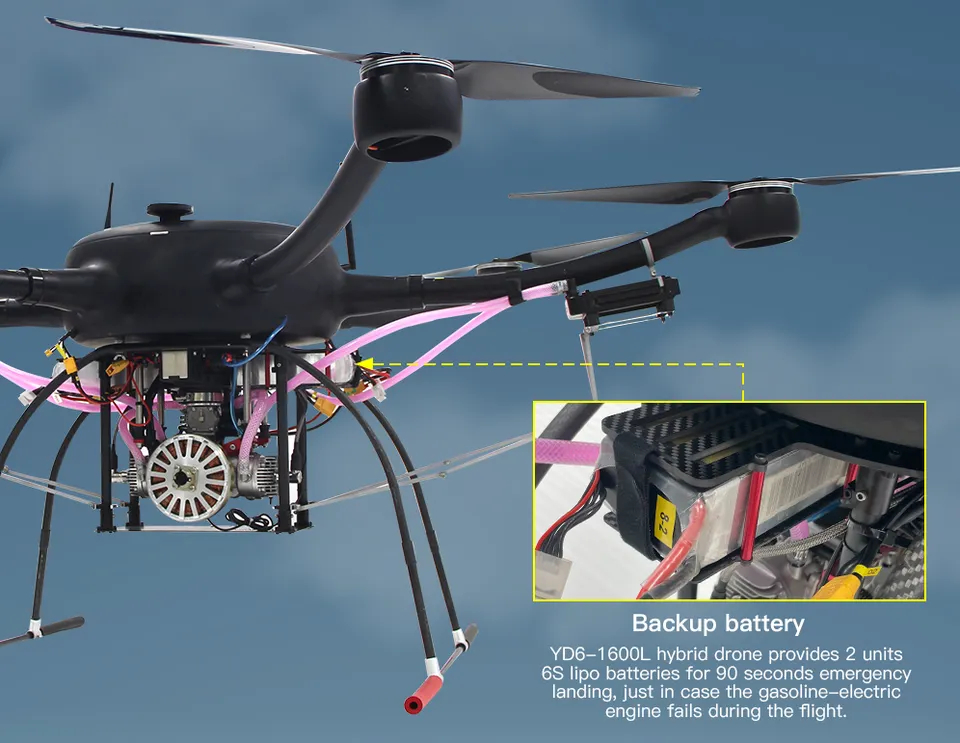

2 x 6S 8000mAh lipo batteries
1 x Generator accessory(starter, fuel level indicator, cable/wire etc)
1 x Assemble and test service
1 x LAUNCH ground control software
Items compatible (not included)
Flight controller: CUAV V5+, CUAV X7 and X7 Pro, AheadX Taurus 2, AheadX LEO 2
Long range HD video & data link: Videopass-N15(15KM range), Videopass-N30(30KM range)
Delivery box: KUA Drop System
